Magneto Evo represent true single stage direct coupled transformerless and capacitorless power monoblock amplifier! Ref. to mention facts Magneto Evo is fully compatible with single - ended (RCA) type of operation!

Magneto Evo is unique as mention before - there is no input, no driver stage, only one single ultra power gold plated FET transistor with one tube (best nuvistor vacuum tube type that is immune to external vibration - almost zero microphonic device)!

Together there is totally new - unique device - NuFET ( nuvistor-FET) that act as high current "triode" with low distortion and excellent behavior ref. to speakers load! Nuvistor triode tube that is connected in special manner between two electrode (and within itself) of the FET act as linearization device to the whole "system" (new device) - NuFET !

Main facts of Magneto Evo:

• Unique device - High power single NuFET self amplification stage amplifier

• One of (if not) the most compact in class (19"x19"x6.5")

• One of (if not) the most efficiency in class A (220W of power consumption for 100W of pure single-ended class A)

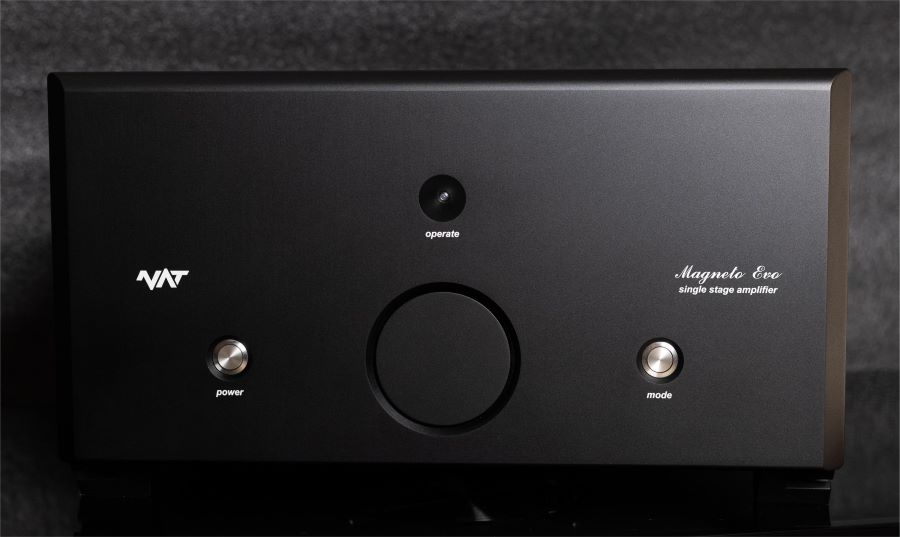

Magneto Evo gives an opportunity to listening the sound on two different mode as high frequency boost mode or standard mode (please read more about this in MANUAL) both of hybryd NuFET type. With power of up to 100W in single-ended configuration there is a capability to drive almost any type of loudspeaker.

Scientific grade output FET device represent high technology in solid state manufacturing. Potential of output single FET reach 1.800W of heat dissipation. Magneto Evo used as low as 12% of max. dissipation cause significantly decrease working temperature for further reliability improvement.

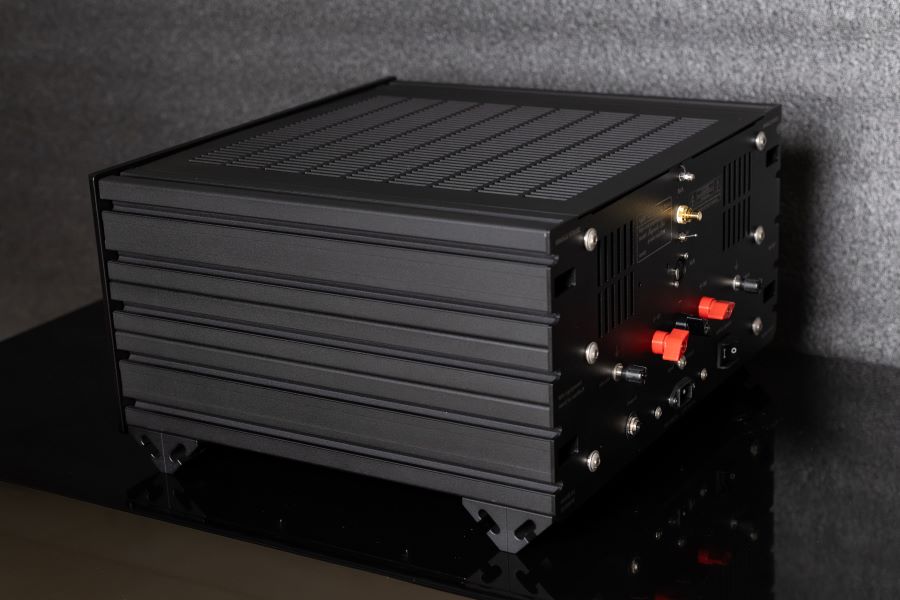

Magneto Evo hand coiled three inductors support NuFET unique operation! Bandwidth reach 5Hz- 100.000Hz as exceptional good flatness for pure single-ended amplifier. Separated output taps (treated with a filter) for 4 and 8 ohms load are realized with laboratory grade connectors.

NOTE: Magneto Evo may drive any load from 1 ohms to over 32 ohms. By specific technical approach special inductor in combination with output NuFET may drive easy almost any type of loudspeaker (with much higher damping factor then standard triode tube single-ended type). Magneto Evo may drive almost all type of speaker.

Power supply section participate in sound quality almost as amplifiers main circuit. Magneto Evo's power unit is designed as high tech totally regulated encapsulated constant current noiseless device. Equivalent available energy from power supply is huge as it is made from audio grade (in total 100.000uF) capacitors. Teflon (PTFE) military grade capacitors is used additionally for the filtration.

Special high curent inductor is used in Magneto Evo as the best noise reduction device in power supply section!

No any adjustment of output NuFET standing current is necessary. Precisely calculated passive self-regulated components with constant current power supply adjust NuFET's standing current.

Wiring by skillfully technicians secure the best quality of signal and power paths inside amplifier - realized with zero printed circuit board! Input signal is transfered with special silver-ofc air dielectric conductor, manufactured by NAT.

Quality of electronic components that is used inside Magneto Evo are at high level - teflon military grade (N.O.S.) power capacitors, entire ofc output hand coiled current inductor, ofc hand coiled inductors, military space grade foil resistor, Vishay space grade foil resistor, industrial high grade capacitors, scientific grade gold plated FET single device semiconductor, laboratory grade connectors...

Magneto Evo work properly at worldwide AC line voltage from 100-250VAC, 50-60Hz (set in factory only).
